Hi!Harmony!-复现

一看题目是鸿蒙联想到鸿蒙操作系统

不过之前没做过这一方面的题目

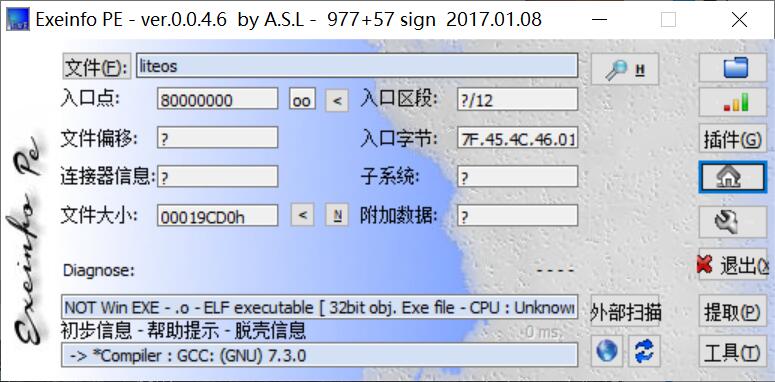

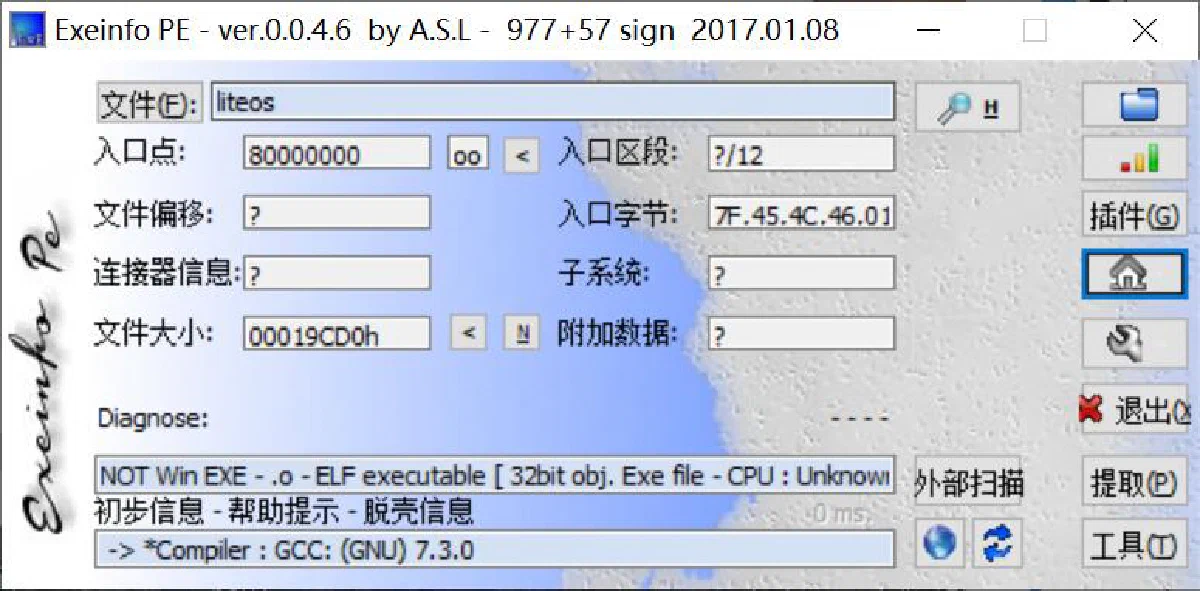

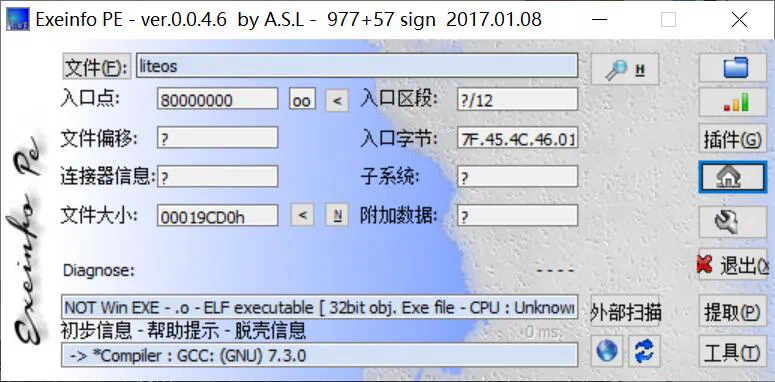

文件丢进EXEinfos里面看看文件信息

用Ubuntu打开看看,发现也不太行

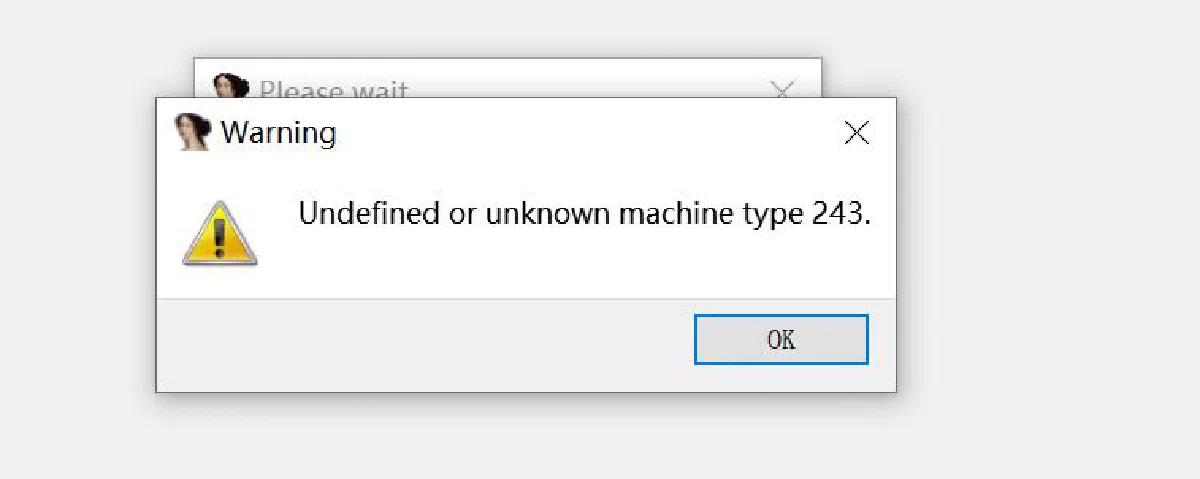

准备用IDA静态分析发现IDA打不开

用file命令查看下文件信息

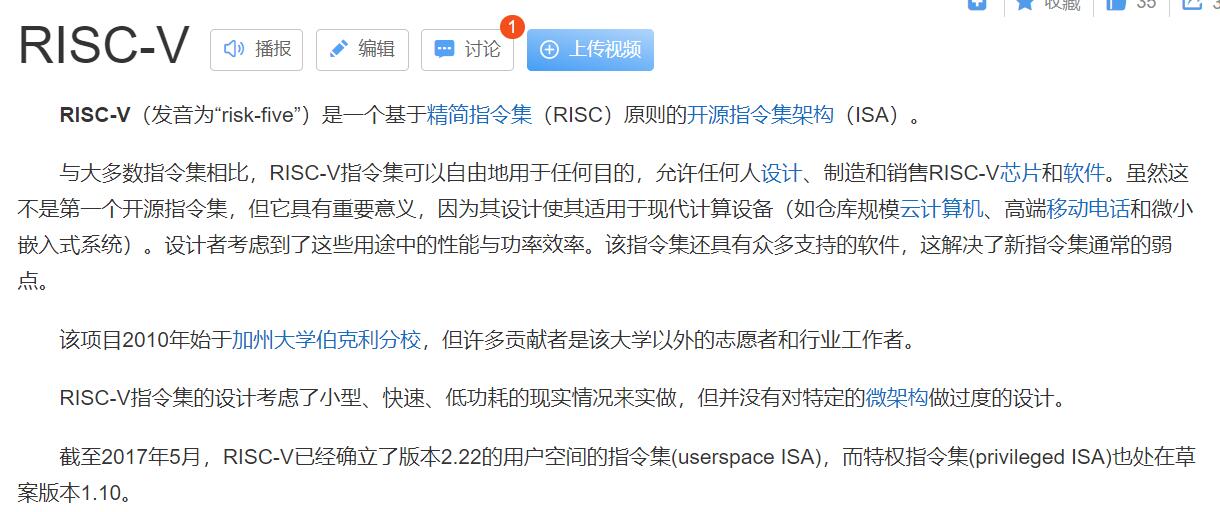

看到了一个信息RISC-V 百度搜索下

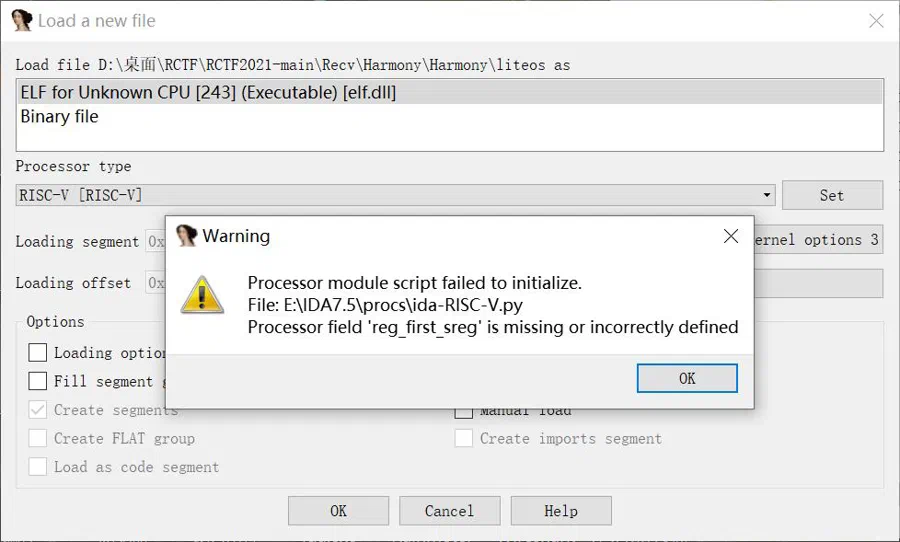

一个指令集怪不得IDA打开搜下有没有关于IDA的RISC-V的插件https://github.com/shuffle2/riscv-ida

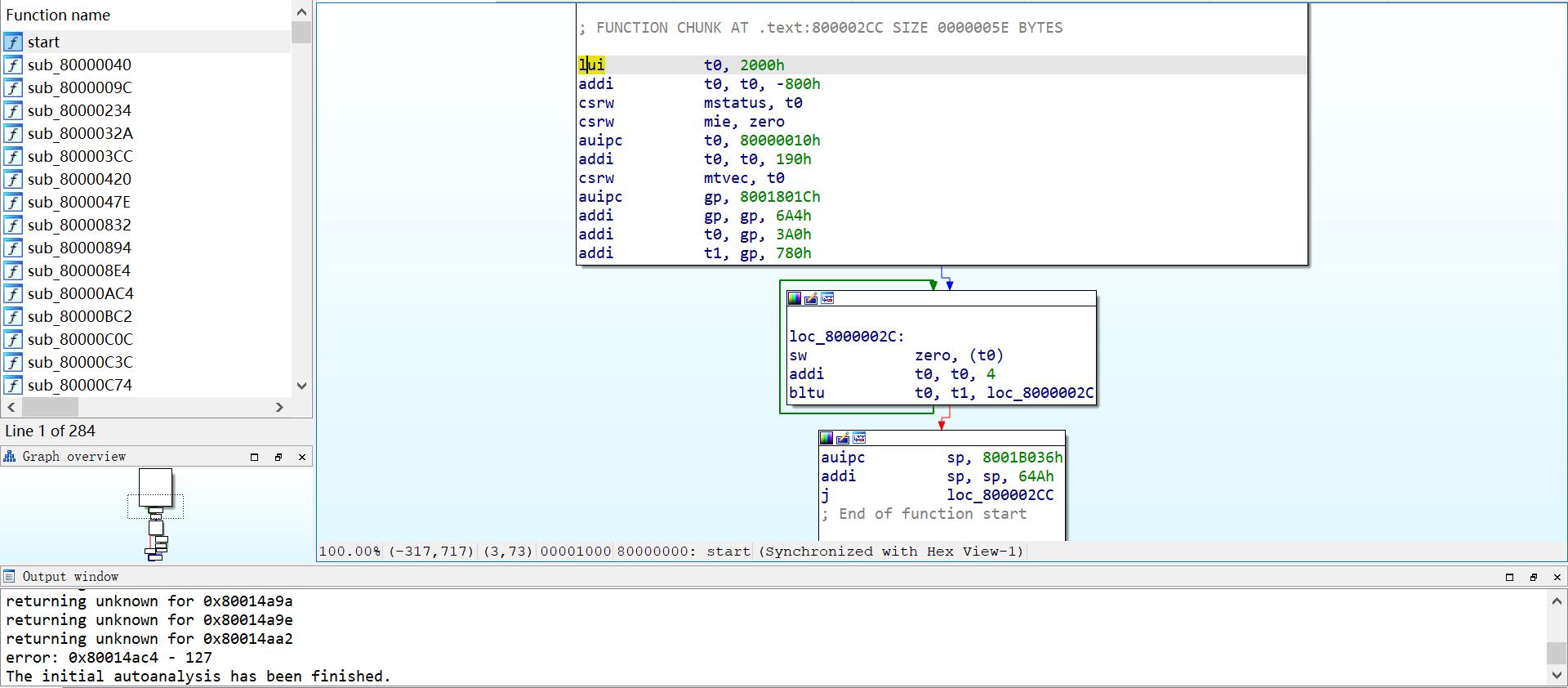

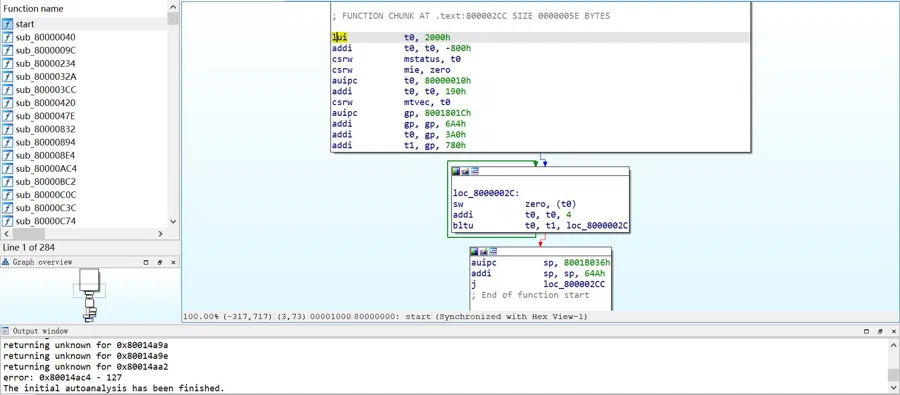

经过一大堆艰难的操作发现不能F5。。。。。。。

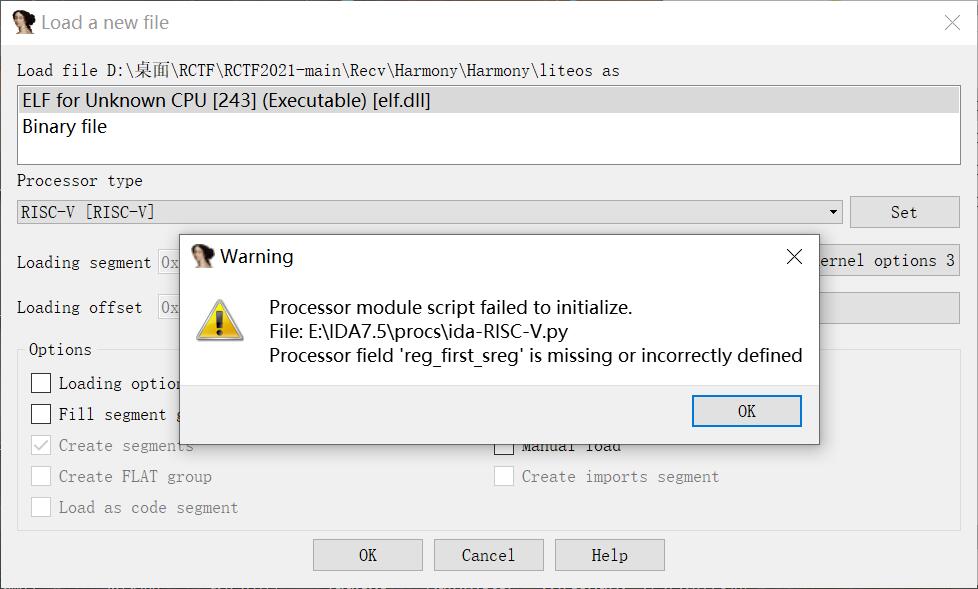

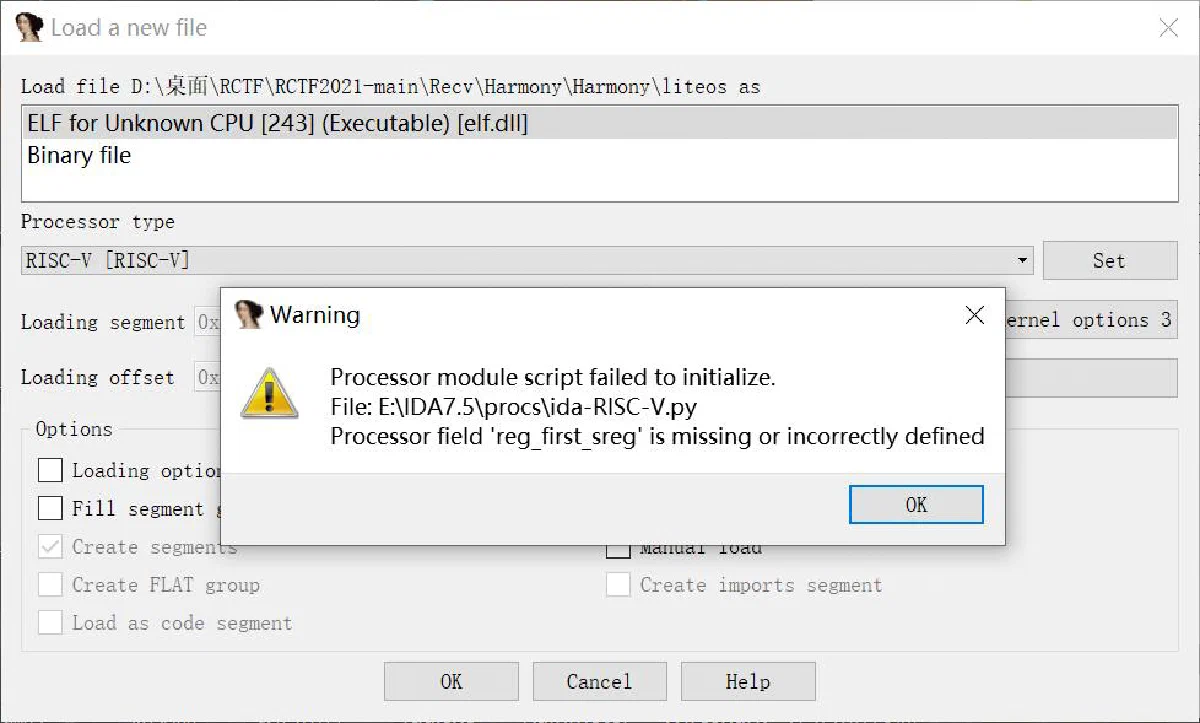

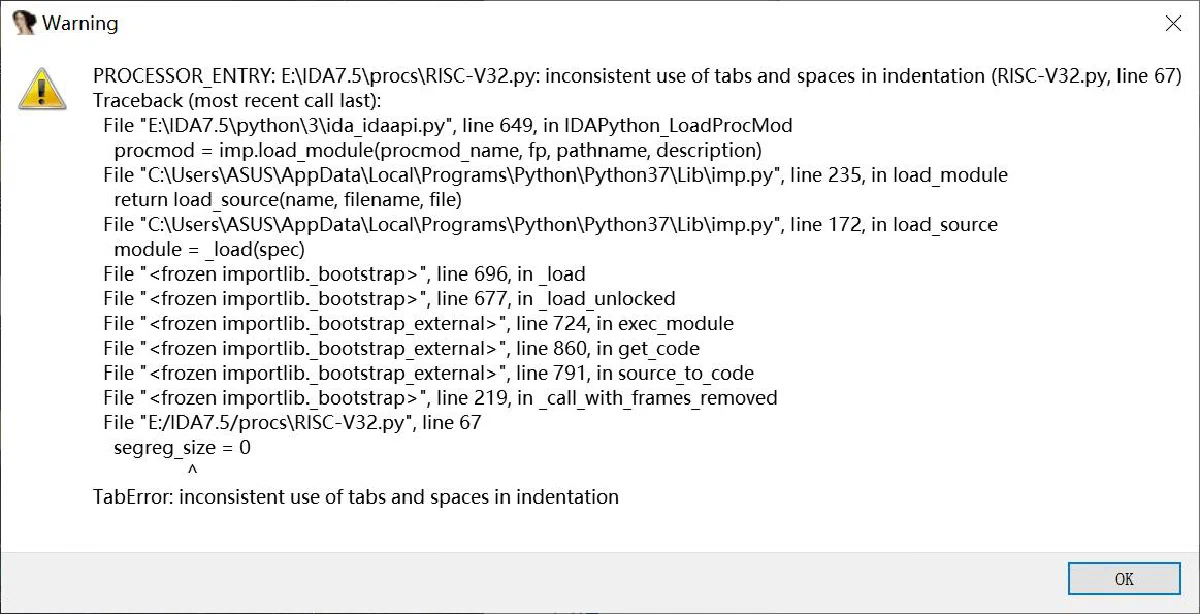

总不能硬读汇编把没学过这个架构搜索其他脚本也报错这也是为啥我再比赛过程中没做出该题的原因

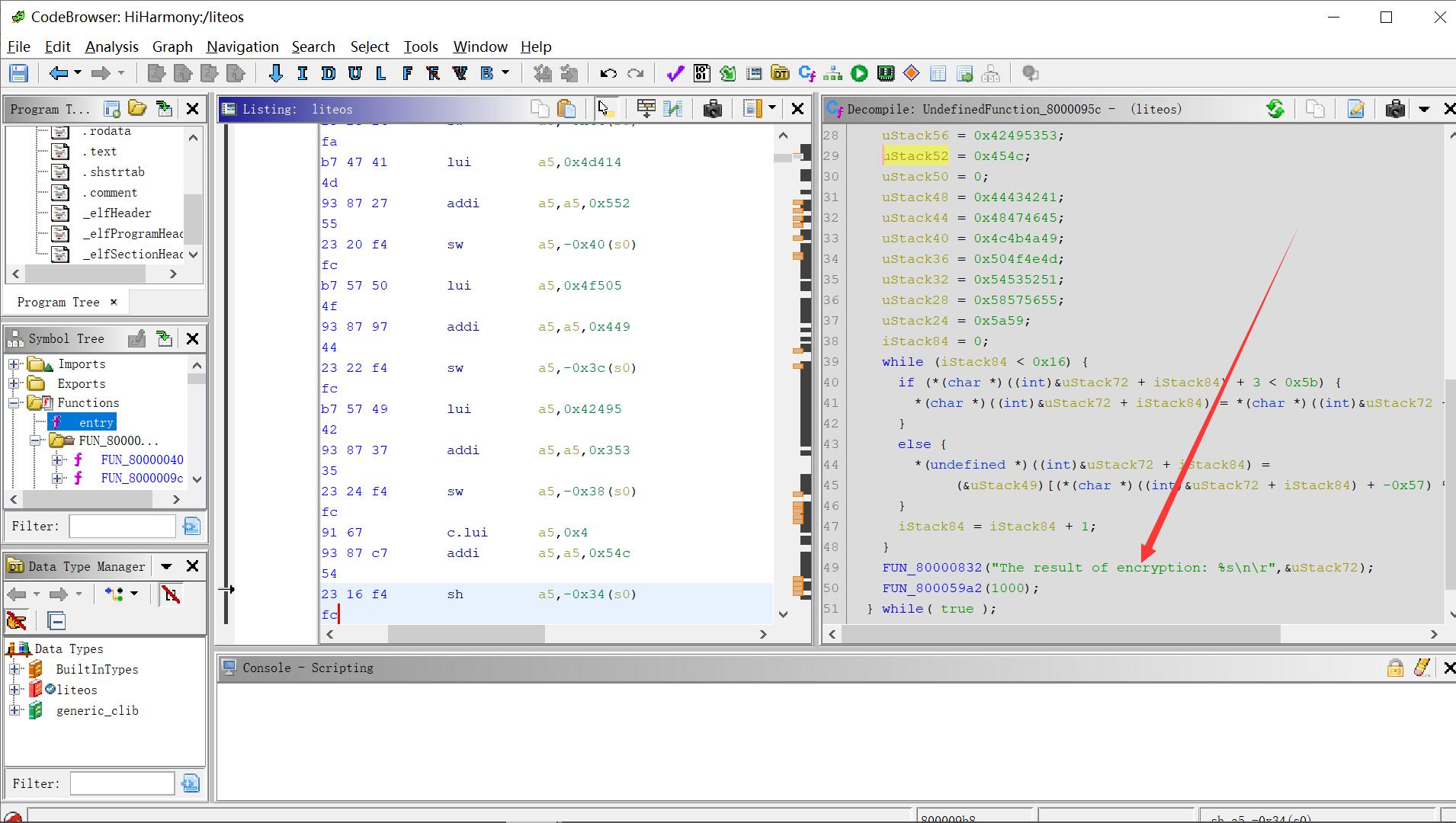

后面想想用新学习到的Ghidra试试发现还真的可以不得不说这个反编译工具还是强啊

反编译伪代码 —解密模块


void UndefinedFunction_8000095c(void)

{
  int iStack84;
  undefined4 uStack72;
  undefined4 uStack68;
  undefined4 uStack64;
  undefined4 uStack60;
  undefined4 uStack56;
  undefined2 uStack52;
  undefined uStack50;
  undefined uStack49;
  undefined4 uStack48;
  undefined4 uStack44;
  undefined4 uStack40;
  undefined4 uStack36;
  undefined4 uStack32;
  undefined4 uStack28;
  undefined2 uStack24;

  do {
    FUN_80000832("Welcome to RCTF 2021...\n\r");
    uStack72 = 0x4d524148;
    uStack68 = 0x44594e4f;
    uStack64 = 0x4d414552;
    uStack60 = 0x4f505449;
    uStack56 = 0x42495353;
    uStack52 = 0x454c;
    uStack50 = 0;
    uStack48 = 0x44434241;
    uStack44 = 0x48474645;
    uStack40 = 0x4c4b4a49;
    uStack36 = 0x504f4e4d;
    uStack32 = 0x54535251;
    uStack28 = 0x58575655;
    uStack24 = 0x5a59;
    iStack84 = 0;
    while (iStack84 < 0x16) {
      if (*(char *)((int)&uStack72 + iStack84) + 3 < 0x5b) {
        *(char *)((int)&uStack72 + iStack84) = *(char *)((int)&uStack72 + iStack84) + '\x03';
      }
      else {
        *(undefined *)((int)&uStack72 + iStack84) =
             (&uStack49)[(*(char *)((int)&uStack72 + iStack84) + -0x57) % 0x1a];
      }
      iStack84 = iStack84 + 1;
    }
    FUN_80000832("The result of encryption: %s\n\r",&uStack72);
    FUN_800059a2(1000);
  } while( true );
}

注意因为数据是小端存储所以提取出来要稍加注意

EXP

data1 = [0x48,0x41,0x52,0x4d,0x4f,0x4e,0x59,0x44,
0x52,0x45,0x41,0x4d,0x49,0x54,0x50,0x4f,0x53,0x53,0x49,0x42,0x4c,0x45]

data2 = [0,0x41,0x42,0x43,0x44,0x45,0x46,0x47,0x48,
0x49,0x4a,0x4b,0x4c,0x4d,0x4e,0x4f,0x50,0x51,0x52,0x53,0x54,0x55,0x56,
0x57,0x58,0x59,0x5a]

flag = 'RCTF{'
for i in range(len(data1)):
    if data1[i] + 3 < 0x5b:
        flag += chr(data1[i] +3)
    else:
        flag += chr(data2[(data1[i] - 0x57) % 0x1a])
flag += '}'
print(flag)
